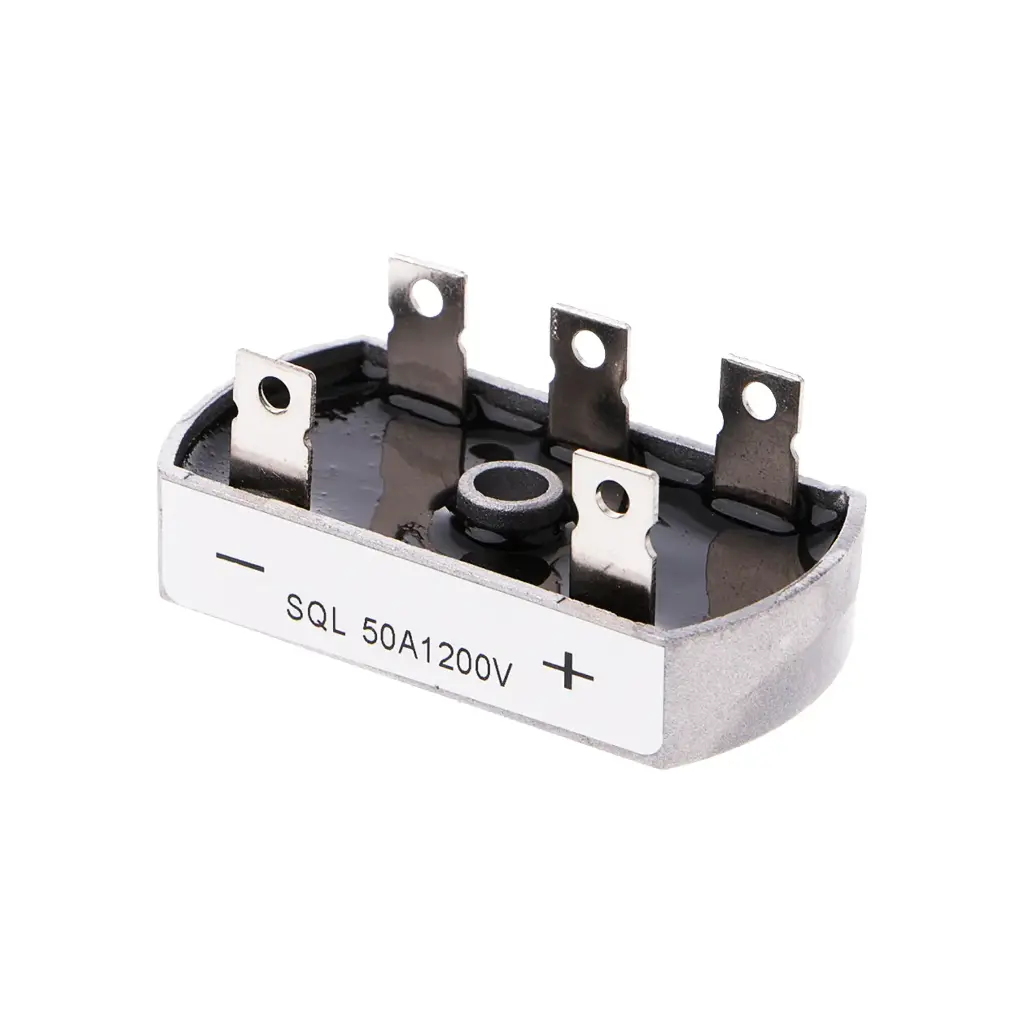

Rectifier bridge - Universal rectifier bridge SQL50A 1200V
El SQL 50A 1600V es un puente rectificador trifásico completo diseñado para aplicaciones de alta potencia y alta frecuencia. Este componente robusto, de color negro, es capaz de entregar una corriente de salida de CC de 50A y operar en un amplio rango de temperatura, desde -40°F hasta 320°F (aproximadamente -40°C a 160°C).
Universal bridge rectifier SQL50A\1200 is an electrical component of the panel or control circuit: it conducts, switches, protects or signals inside the system.
In electrical work 90 % of faults sit in the joint, not in the part. A loose terminal, a bad crimp or chafed insulation produce intermittent faults that no new component will cure.
Specifications and compatibility
- Amperage
- 50 A
- Dimensions
- 8,5 x 5,5 x 9 cm
- Weight
- 0.50 kg
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- PUENTE RECTIFICADOR UNIVERSAL SQL40A\1600
- PUENTE RECTIFICADOR UNIVERSAL SQL60A\1600
- PUENTE RECTIFICADOR UNIVERSAL SQL20A
- PUENTE RECTIFICADOR UNIVERSAL SQL80A\1600
- PUENTE RECTIFICADOR UNIVERSAL SQL200A\1600
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Su snippet dinámico se mostrará aquí...
Este mensaje se muestra ya que no brindó ni un filtro ni una plantilla para usar.
Specifications
| Characteristics | |
|---|---|
| Amperage (A) | 50 A |
| Weight | 0,50 kg |
| Dimensions | 8500*5500*9000 mm |
| Spare Parts | |
|---|---|
| Generator Parts | Rectifier bridge assembly |
