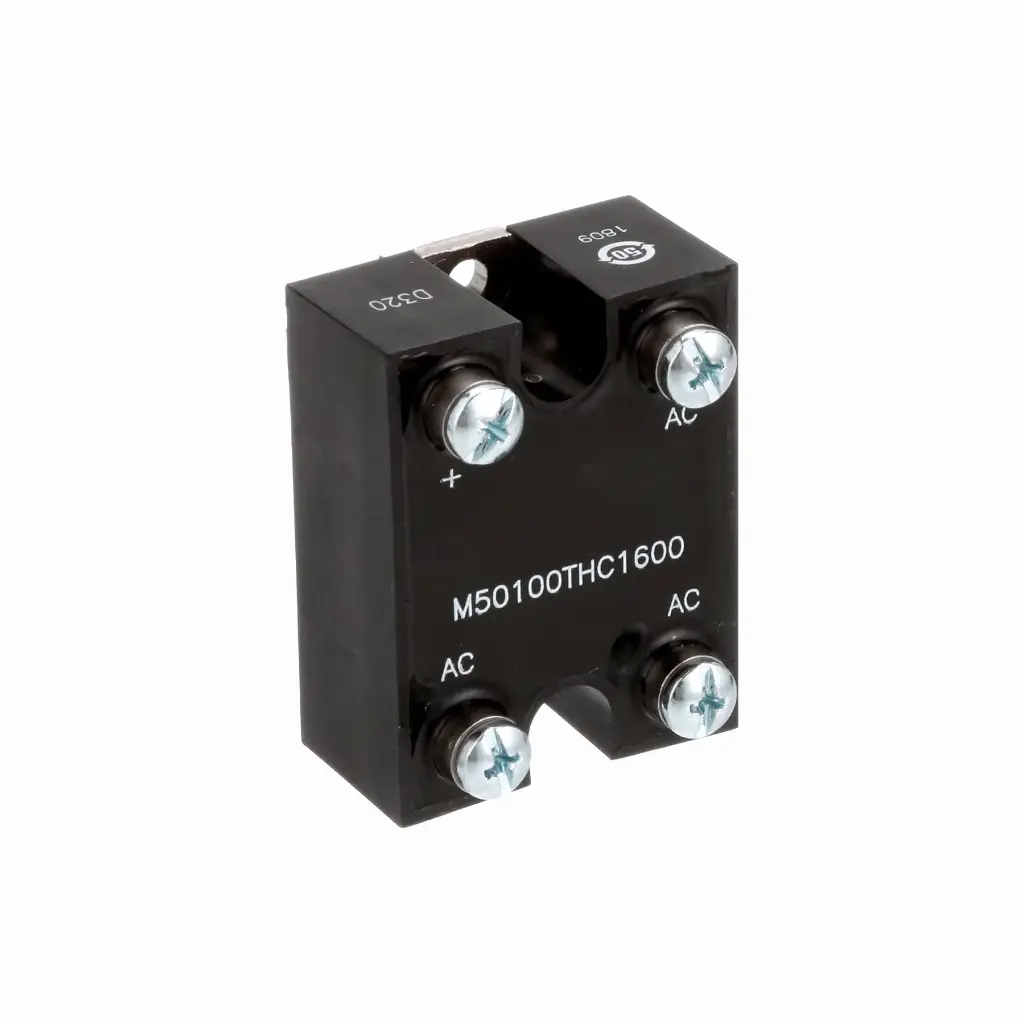

Rectifier bridge - Universal rectifier bridge M50100THC1600
El M50100THC1600 es un módulo rectificador de medio puente trifásico diseñado para aplicaciones robustas. Este componente, con una corriente conductiva de 100A y una impresionante corriente máxima en impulso de 1.5kA, puede soportar una tensión de retorno máxima de 1.6kV. Su montaje eléctrico y mecánico es atornillado, y viene en una carcasa tipo M50, lo que facilita su integración en sistemas existentes. Con una corriente conductiva máxima de 1.2V y una estructura de semiconductor de cátodo compartido, este módulo garantiza un rendimiento fiable en la conversión de corriente.
Universal bridge rectifier M50100THC1600 is an electrical component of the panel or control circuit: it conducts, switches, protects or signals inside the system.
In electrical work 90 % of faults sit in the joint, not in the part. A loose terminal, a bad crimp or chafed insulation produce intermittent faults that no new component will cure.
Specifications and compatibility
- Amperage
- 100 A
- Dimensions
- 8,5 x 5,5 x 9 cm
- Weight
- 0.50 kg
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- PUENTE RECTIFICADOR UNIVERSAL M50100THA1600
- PUENTE RECTIFICADOR UNIVERSAL MDS100-12
- PUENTE RECTIFICADOR UNIVERSAL KBPC50-10
- PUENTE RECTIFICADOR UNIVERSAL MDS60-12\16
- PUENTE RECTIFICADOR UNIVERSAL SQL100A\1600
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Characteristics | |
|---|---|
| Amperage (A) | 100 A |
| Weight | 0,50 kg |
| Dimensions | 8500*5500*9000 mm |
| Spare Parts | |
|---|---|
| Generator Parts | Rectifier bridge assembly |
