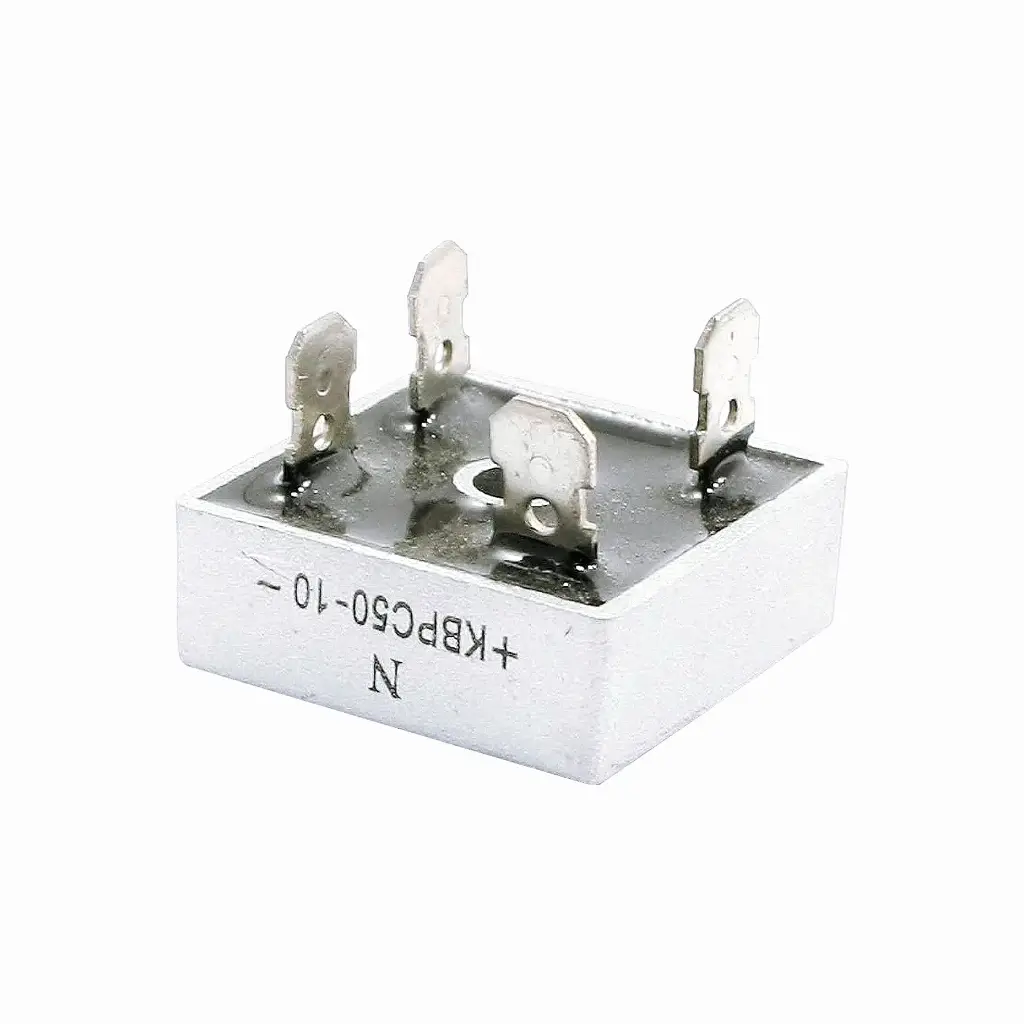

Rectifier bridge - Universal rectifier bridge KBPC50-10
El puente rectificador KBPC-5010 es un componente esencial y robusto, diseñado específicamente para su uso en generadores de gasolina y diésel con escobillas. Este rectificador se destaca por su impresionante capacidad, ya que puede manejar una corriente de hasta 50 Amperios y soportar picos de voltaje de hasta 1000 Volts, asegurando así un rendimiento fiable y duradero para la conversión de corriente alterna a continua en tu equipo.
Universal bridge rectifier KBPC50-10 is an electrical component of the panel or control circuit: it conducts, switches, protects or signals inside the system.
In electrical work 90 % of faults sit in the joint, not in the part. A loose terminal, a bad crimp or chafed insulation produce intermittent faults that no new component will cure.
Specifications and compatibility
- Amperage
- 50 A
- Dimensions
- 8,5 x 5,5 x 9 cm
- Weight
- 0.50 kg
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- PUENTE RECTIFICADOR UNIVERSAL M50100THA1600
- PUENTE RECTIFICADOR UNIVERSAL M50100THC1600
- PUENTE RECTIFICADOR UNIVERSAL MDS100-12
- PUENTE RECTIFICADOR UNIVERSAL MDS60-12\16
- PUENTE RECTIFICADOR UNIVERSAL SQL100A\1600
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Su snippet dinámico se mostrará aquí...
Este mensaje se muestra ya que no brindó ni un filtro ni una plantilla para usar.
Specifications
| Characteristics | |
|---|---|
| Amperage (A) | 50 A |
| Weight | 0,50 kg |
| Dimensions | 8500*5500*9000 mm |
| Spare Parts | |
|---|---|
| Generator Parts | Rectifier bridge assembly |
