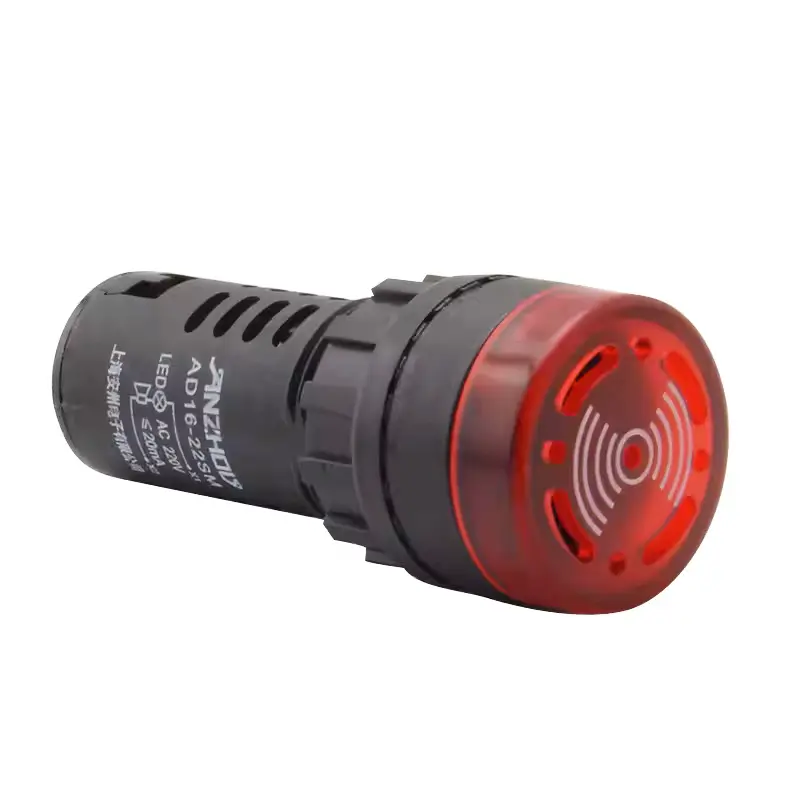

LED pilot light Red/ALARMA AD16-22SM 24V is an electrical component of the panel or control circuit: it conducts, switches, protects or signals inside the system.
In electrical work 90 % of faults sit in the joint, not in the part. A loose terminal, a bad crimp or chafed insulation produce intermittent faults that no new component will cure.
Specifications and compatibility
- Type
- ALARMA
- Electrical type
- Electrical accessories
- Voltage (V)
- 24 VDC
How to verify before ordering
- Match voltage, current and conductor cross-section to what the circuit demands.
- Check the connection type (screw, spring, crimp) and terminal gauge.
- Confirm the IP rating if the part sits in an exposed area of the panel.
Frequently asked questions
Why does a terminal get hot?
Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.
Can I fit a relay with a higher amp rating?
You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.
Related parts
- LUZ PILOTO LED ROJO AD16-22D/S 220V
- LUZ PILOTO LED ROJO/ALARMA AD16-22SM 110V
- LUZ PILOTO LED ROJO AD16-22D/S 110V
- LUZ PILOTO LED ROJO/ALARMA AD16-22SM 220V
- LUZ PILOTO LED AZUL AD16-22D/S 220V
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Su snippet dinámico se mostrará aquí...
Este mensaje se muestra ya que no brindó ni un filtro ni una plantilla para usar.
Specifications
| Characteristics | |
|---|---|
| Voltage (V) | 24 VDC |
| Type | Alarm |
| Electrical power | |
|---|---|
| Electrical | Electrical accessories |
