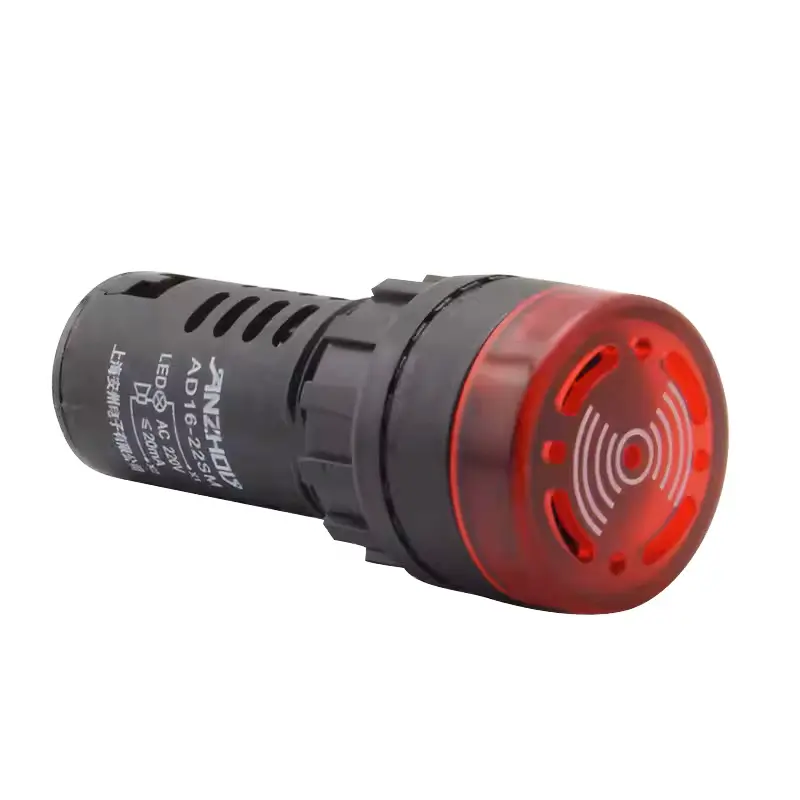

Lighting - LED pilot light Red/ALARMA AD16-22SM 110V

LED pilot light Red/ALARMA AD16-22SM 110V is an auxiliary electrical part: part of the set wiring, protection or indication.

Before replacing, measure continuity and voltage under load. A terminal that shows continuity at no load can drop completely once current flows, and that is the case that wastes the most time.

Specifications and compatibility

Type

ALARMA

Electrical type

Electrical accessories

Voltage (V)

110 VAC

How to verify before ordering

• Match voltage, current and conductor cross-section to what the circuit demands.
• Check the connection type (screw, spring, crimp) and terminal gauge.
• Confirm the IP rating if the part sits in an exposed area of the panel.

Frequently asked questions

Why does a terminal get hot?

Contact resistance: too little clamping area or a bad crimp. The heat oxidises the joint and worsens it until the circuit opens.

Can I fit a relay with a higher amp rating?

You can, and it is often good practice, provided coil voltage and contact arrangement match. Never fit one with a lower rating.

Related parts

• LUZ PILOTO LED ROJO/ALARMA AD16-22SM 24V
• LUZ PILOTO LED ROJO/ALARMA AD16-22SM 220V
• LUZ PILOTO LED ROJO AD16-22D/S 220V
• LUZ PILOTO LED ROJO /ALARMA AD16-22SM 36V
• LUZ PILOTO LED ROJO AD16-22D/S 110V

See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
