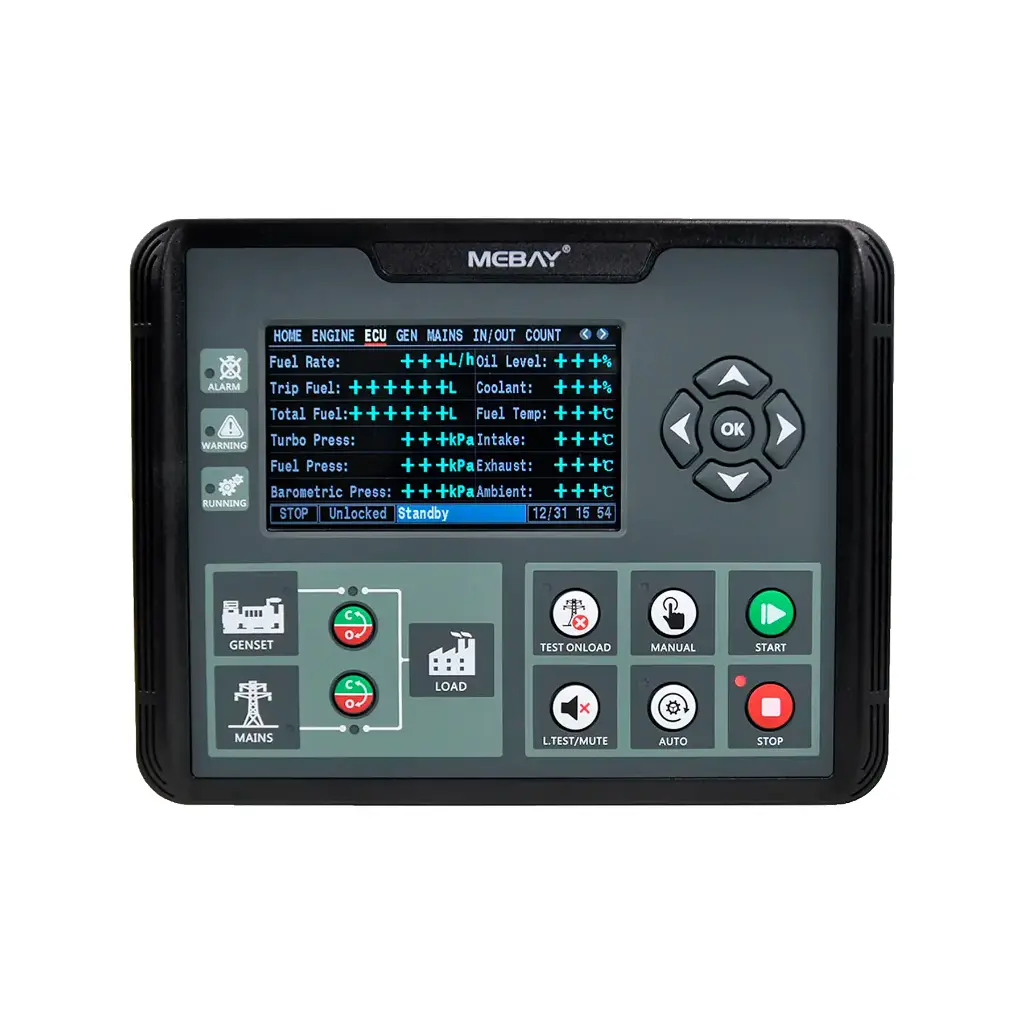

Generator controller - MEBAY DC72DR MK2

Generator controller - MEBAY DC72DR MK2

https://www.nanwan.cc/web/image/product.template/1810/image_1920?unique=f6451e1
(0 review)
Controlador independiente (Pantalla a color CAN J1939 RS485 AMF), El tamaño y el método de conexión son los mismos que los de SmartGen HGM6110 y HGM6120, pantalla LCD a color de 4,3 pulgadas, pantalla de color verdadero de 24 bits, interfaz USB estándar, reloj en tiempo real. Reemplaza perfectamente la SmartGen HGM61XX serie.

$ 459.00 459.0 USD Tax Excluded

459.00 Bs Tax Excluded

Not Available For Sale

  • Brand
  • Model
  • AMF
  • Dimensions
  • Weight

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Mebay DC72DR MK2 Controller is the genset control module: it runs start and stop, watches oil pressure, temperature and speed, and commands the transfer when mains fails.

Controllers fail three ways: moisture and creeping corrosion on the terminals, transients on the control supply, and display wear. Typical symptoms are intermittent starting, phantom low-oil alarms, or a screen that stops responding.

Specifications and compatibility

Brand
MEBAY
Model
DC72DR MKII
Dimensions
225 x 165 x 75 mm
Weight
1.50 kg

How to verify before ordering

  • The reference must match the installed module. Identical size does not mean identical wiring: input map and transfer logic change between versions.
  • Confirm the supply voltage (12 V or 24 V) and the number of inputs and outputs your panel actually uses.
  • If the panel has an expansion module or remote communication, check that the new controller supports the same protocol.
  • The reference shown on this listing is DC72DR MKII; cross-check it against the one stamped on the removed part.

Frequently asked questions

Can it be installed without reprogramming?

No. Every new controller needs configuration: rated voltage, frequency, crank and cooldown timers, and transfer logic. We ship the factory configuration; site parameters are set on commissioning.

Does the controller include the display?

Where module and screen are one piece, yes. If your panel uses a separate display, check the full reference before ordering, because they are sold separately.

Related parts

See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.

Specifications

Brand MEBAY
Model DC72DR MKII
AMF Yes
Dimensions 225 x 165 x 75 mm
Weight 1,50 kg
