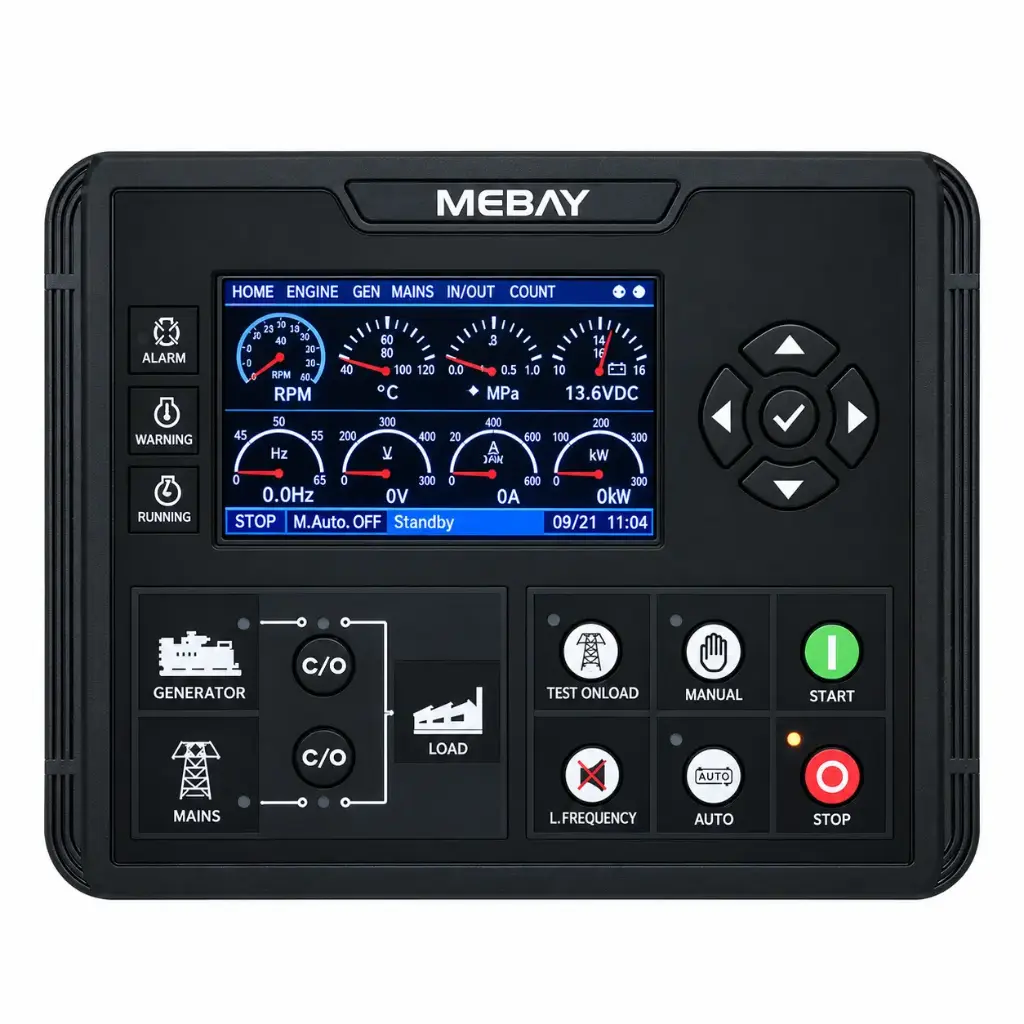

Generator controller - MEBAY DC72D MK2

Generator controller - MEBAY DC72D MK2

https://www.nanwan.cc/web/image/product.template/1561/image_1920?unique=ad0468b
(0 review)
Controlador independiente (Pantalla a color CAN J1939 AMF), El tamaño y el método de conexión son los mismos que los de SmartGen HGM6110 y HGM6120, pantalla LCD a color de 4,3 pulgadas, pantalla de color verdadero de 24 bits, interfaz USB estándar, reloj en tiempo real. Reemplaza perfectamente la SmartGen HGM61XX serie.

$ 429.00 429.0 USD Tax Excluded

429.00 Bs Tax Excluded

Not Available For Sale

  • Brand
  • Model
  • AMF
  • Dimensions
  • Weight

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Mebay DC72D MK2 Controller is the unit that automates the set: it decides when to start, when to transfer load, when to alarm and when to shut down for protection.

Download the alarm history before replacing the module. Many "controller faults" are really a sensor or an emergency-stop wire. The event log often saves the swap.

Specifications and compatibility

Brand
MEBAY
Model
DC72D MKII
Dimensions
225 x 165 x 75 mm
Weight
1.50 kg

How to verify before ordering

  • The reference must match the installed module. Identical size does not mean identical wiring: input map and transfer logic change between versions.
  • Confirm the supply voltage (12 V or 24 V) and the number of inputs and outputs your panel actually uses.
  • If the panel has an expansion module or remote communication, check that the new controller supports the same protocol.
  • The reference shown on this listing is DC72D MKII; cross-check it against the one stamped on the removed part.

Frequently asked questions

Can it be installed without reprogramming?

No. Every new controller needs configuration: rated voltage, frequency, crank and cooldown timers, and transfer logic. We ship the factory configuration; site parameters are set on commissioning.

Does the controller include the display?

Where module and screen are one piece, yes. If your panel uses a separate display, check the full reference before ordering, because they are sold separately.

Related parts

See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.

Specifications

Brand MEBAY
Model DC72D MKII
AMF Yes
Dimensions 225 x 165 x 75 mm
Weight 1,50 kg
