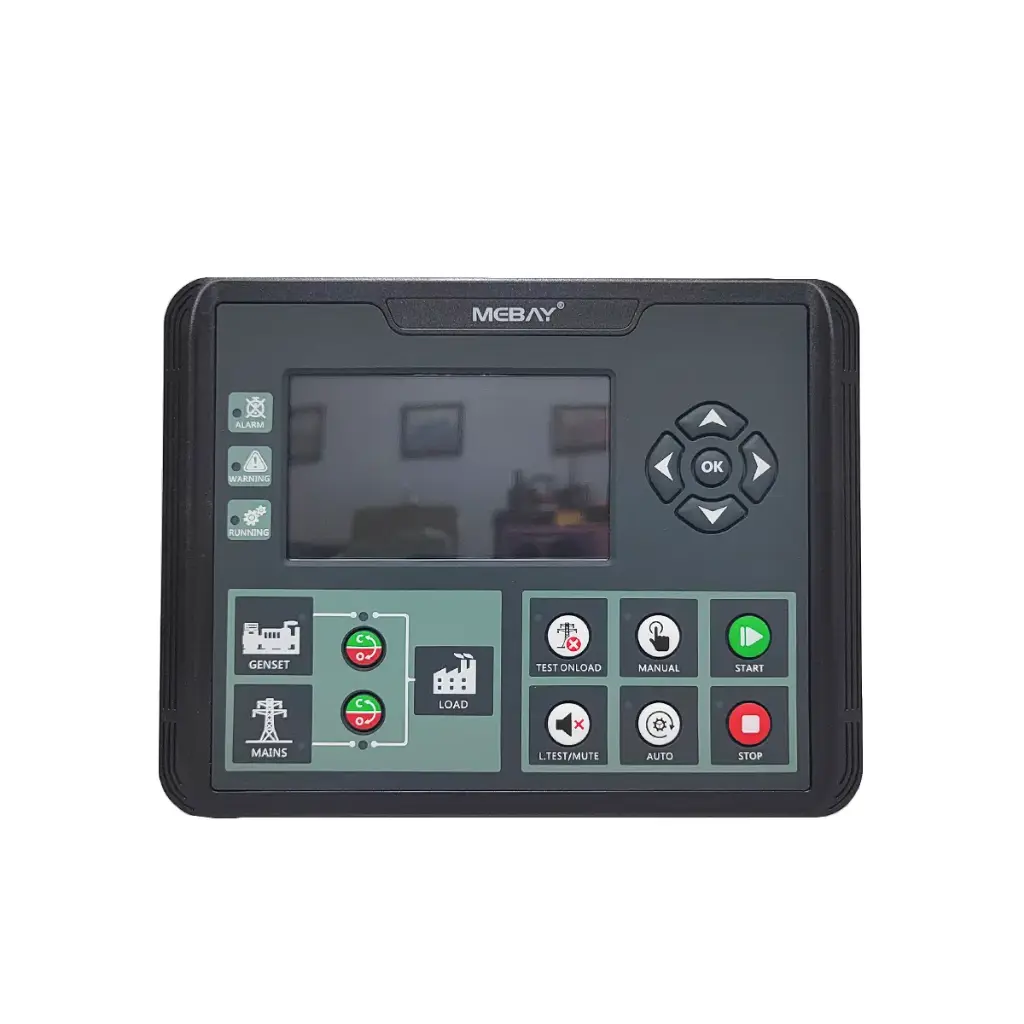

Generator controller - MEBAY DC62DR-MK2

Generator controller - MEBAY DC62DR-MK2

https://www.nanwan.cc/web/image/product.template/1564/image_1920?unique=ad0468b
(0 review)

Este controlador de serie está especializado en arranque, parada, monitoreo de parámetros, verificación de fallas y configuración de datos de grupos electrógenos diésel/gasolina/gas.

En este controlador se adapta una pantalla LCD colorida de 4,3 pulgadas con un nuevo diseño de interfaz de usuario para que las fallas relativas se puedan mostrar directamente. Todos los parámetros se pueden mostrar mediante indicadores y palabras simulados. Además, la pantalla LCD puede mostrar varias fallas al mismo tiempo que el grupo electrógeno se detendrá una vez que no pueda funcionar correctamente.

$ 399.00 399.0 USD Tax Excluded

399.00 Bs Tax Excluded

Not Available For Sale

  • Brand
  • Model
  • Dimensions
  • Weight
  • AMF

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Controller MEBAY DC62DR-MK2 is the genset control module: it runs start and stop, watches oil pressure, temperature and speed, and commands the transfer when mains fails.

Controllers fail three ways: moisture and creeping corrosion on the terminals, transients on the control supply, and display wear. Typical symptoms are intermittent starting, phantom low-oil alarms, or a screen that stops responding.

Specifications and compatibility

Brand
MEBAY
Model
DC62DR MKII
Dimensions
225 x 165 x 75 mm
Weight
1.50 kg
Material
AMF SERIES

How to verify before ordering

  • The reference must match the installed module. Identical size does not mean identical wiring: input map and transfer logic change between versions.
  • Confirm the supply voltage (12 V or 24 V) and the number of inputs and outputs your panel actually uses.
  • If the panel has an expansion module or remote communication, check that the new controller supports the same protocol.
  • The reference shown on this listing is DC62DR MKII; cross-check it against the one stamped on the removed part.

Frequently asked questions

Can it be installed without reprogramming?

No. Every new controller needs configuration: rated voltage, frequency, crank and cooldown timers, and transfer logic. We ship the factory configuration; site parameters are set on commissioning.

Does the controller include the display?

Where module and screen are one piece, yes. If your panel uses a separate display, check the full reference before ordering, because they are sold separately.

Related parts

See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.

Specifications

Brand MEBAY
Model DC62DR MKII
Dimensions 225 x 165 x 75 mm
Weight 1,50 kg
AMF Yes
