Generator controller - MEBAY ATS220

Generator controller - MEBAY ATS220

https://www.nanwan.cc/web/image/product.template/1813/image_1920?unique=2c28dc4
(0 review)

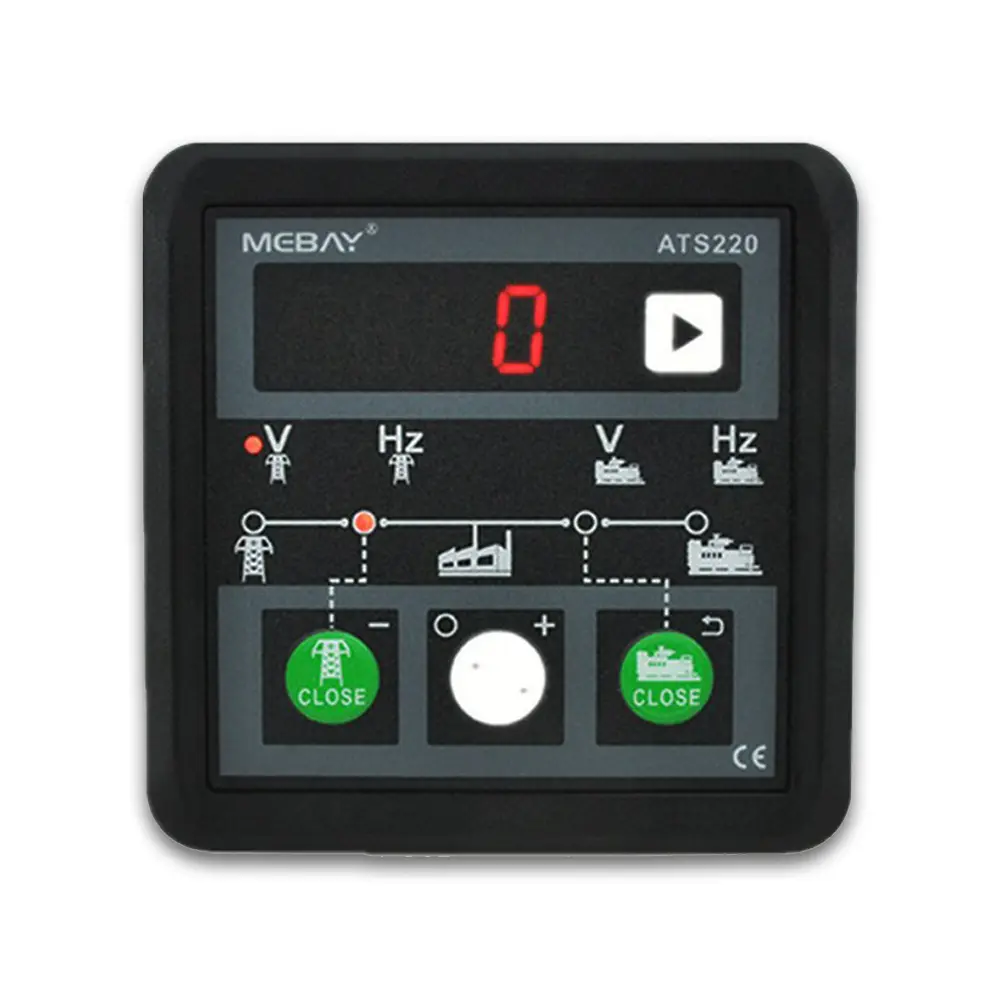

El ATS220 es un controlador de conmutación automática de red/generación que puede controlar automática o manualmente el interruptor de alimentación dual ATS, que es adecuado para aplicaciones de generación de energía en todos los sentidos. Tiene una pantalla digital LED de 4 dígitos, que puede mostrar el voltaje de generación de energía monofásico, la frecuencia de generación de energía, el voltaje de red y la frecuencia de Red Eléctrica. Indica el estado de funcionamiento del interruptor ATS a través de los indicadores LED.

$ 103.11 103.11 USD Tax Excluded

103.11 Bs Tax Excluded

Not Available For Sale

  • Brand
  • Model
  • Dimensions
  • Weight

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Mebay ATS220 ATS Controller switches the load between mains and generator: it monitors the mains, commands the start, transfers, and re-transfers with a delay so the set is not shocked.

In contactor-based ATS the wear is in the main contacts and the mechanical interlock. In motorised-breaker ATS it is the charging motor and the limit switches. Knowing which one your panel uses tells you what to keep in stock.

Specifications and compatibility

Brand
MEBAY
Model
ATS220
Dimensions
110 x 110 x 80 mm
Weight
0.30 kg

How to verify before ordering

  • Match the number of poles, the rated current and the switching type (contactor or motorised breaker).
  • Check the ATS control voltage: 110 V, 220 V or 24 V depending on the panel it goes into.
  • Confirm whether neutral is switched. On installations with a distributed neutral this is mandatory.
  • The reference shown on this listing is ATS220; cross-check it against the one stamped on the removed part.

Frequently asked questions

The set starts but the load is not transferred. What do I check?

The signal first: mains-sensing relay, control fuse and the wiring between ATS and set. Then the interlock: if the mains contactor does not release, the generator contactor will not close, by design.

Can I fit an ATS of another brand?

Yes, as long as control voltage and logic are compatible with the set panel. With a controller-based set, the ATS must accept that controller transfer signal.

Related parts

See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.

Specifications

Brand MEBAY
Model ATS220
Dimensions 110 x 110 x 80 mm
Weight 0,30 kg
