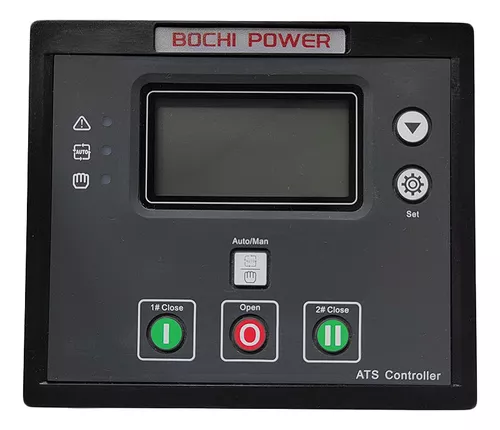

Generator controller - ATS560NB

Generator controller - ATS560NB

https://www.nanwan.cc/web/image/product.template/996/image_1920?unique=2c28dc4
(0 review)
El controlador de conmutación automática de doble potencia ATS560N es un módulo de conmutación inteligente de doble potencia que integra funciones programables, medición automatizada, pantalla LCD y comunicación digital. El controlador de conmutación automática de doble potencia ATS560N está compuesto por un microprocesador como núcleo. Puede detectar con precisión dos voltajes trifásicos/monofásicos y responder a anomalías de voltaje (sobrevoltaje, subvoltaje, pérdida de fase, sobrefrecuencia, subfrecuencia). y valores de conmutación de control pasivo de salida. Este dispositivo considera completamente la aplicación en una variedad de ATS (sistemas de transferencia automática de carga) y puede usarse directamente en interruptores ATS especiales, ATS compuestos por contactores, ATS compuestos por interruptores de aire, etc.

$ 172.33 172.33 USD Tax Excluded

172.33 Bs Tax Excluded

Not Available For Sale

  • Brand
  • Country of Origin
  • Model
  • Voltage (V)
  • Voltage (V)
  • Dimensions
  • Weight

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Controller - ATS560NB is the automatic transfer switch: it senses the mains failure, starts the set, transfers the load and returns it once the mains is stable.

Most ATS failures are not in the switch but in its logic: a drifting mains-sensing relay, an open control fuse or a cut signal wire. The symptom is a set that starts but never takes load.

Specifications and compatibility

Brand
BCP
Model
ATS560 NB
Voltage (V)
24 VDC
Dimensions
150 x 130 x 75 mm
Weight
1.00 kg
Country of origin
China

How to verify before ordering

  • Match the number of poles, the rated current and the switching type (contactor or motorised breaker).
  • Check the ATS control voltage: 110 V, 220 V or 24 V depending on the panel it goes into.
  • Confirm whether neutral is switched. On installations with a distributed neutral this is mandatory.
  • The reference shown on this listing is ATS560 NB; cross-check it against the one stamped on the removed part.
  • Declared origin: China. Check this if your purchase requires a specific origin.

Frequently asked questions

The set starts but the load is not transferred. What do I check?

The signal first: mains-sensing relay, control fuse and the wiring between ATS and set. Then the interlock: if the mains contactor does not release, the generator contactor will not close, by design.

Can I fit an ATS of another brand?

Yes, as long as control voltage and logic are compatible with the set panel. With a controller-based set, the ATS must accept that controller transfer signal.

Related parts

See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.

Specifications

Brand BCP
Country of Origin China
Model ATS560 NB
Voltage (V) 12 VDC, 24 VDC
Dimensions 150 x 130 x 75 mm
Weight 1,00 kg
