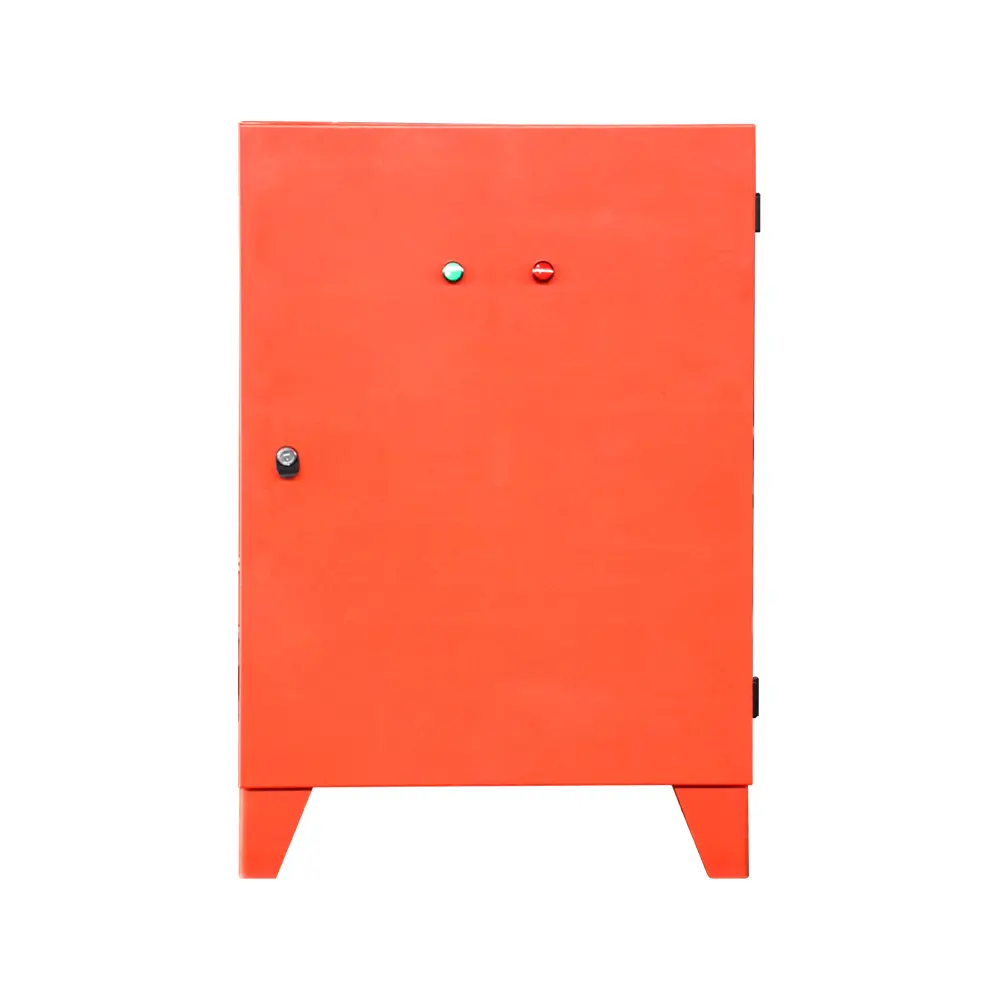

Distribution cabinet - (1000A—700A—300cm) — Floor-standing low-voltage distribution cabinet for incoming supply distribution, metering and outgoing circuit protection. Cabinet dimensions decide how many devices fit and how much room the incoming and outgoing cables have: size the enclosure from the number of outgoing circuits, the breaker frame rating (for example 100 A / 250 A / 630 A) and the busbar cross-section, not the other way round. The enclosure must be reliably earthed, and space must be left on the incoming side for an isolating switch used during maintenance; ATS versions also need room for two incoming supplies and for the mechanical or electrical interlock. Before installation check that the cabinet dimensions match the site plinth, the door openings and the transport route, and that the IP rating suits the environment (IP30 or better indoors, higher outdoors). Confirm dimensions, cable entry direction and whether an ATS is included before ordering; the figures in this item name are enclosure outline dimensions and the actual configuration follows the drawing.
Specifications
| Characteristics | |
|---|---|
| Dimensions | 103 x 71 x 31 cm |
| Electrical power | |
|---|---|
| Electrical | Distribution cabinet |
| Others | |
|---|---|
| Transfer | None |
