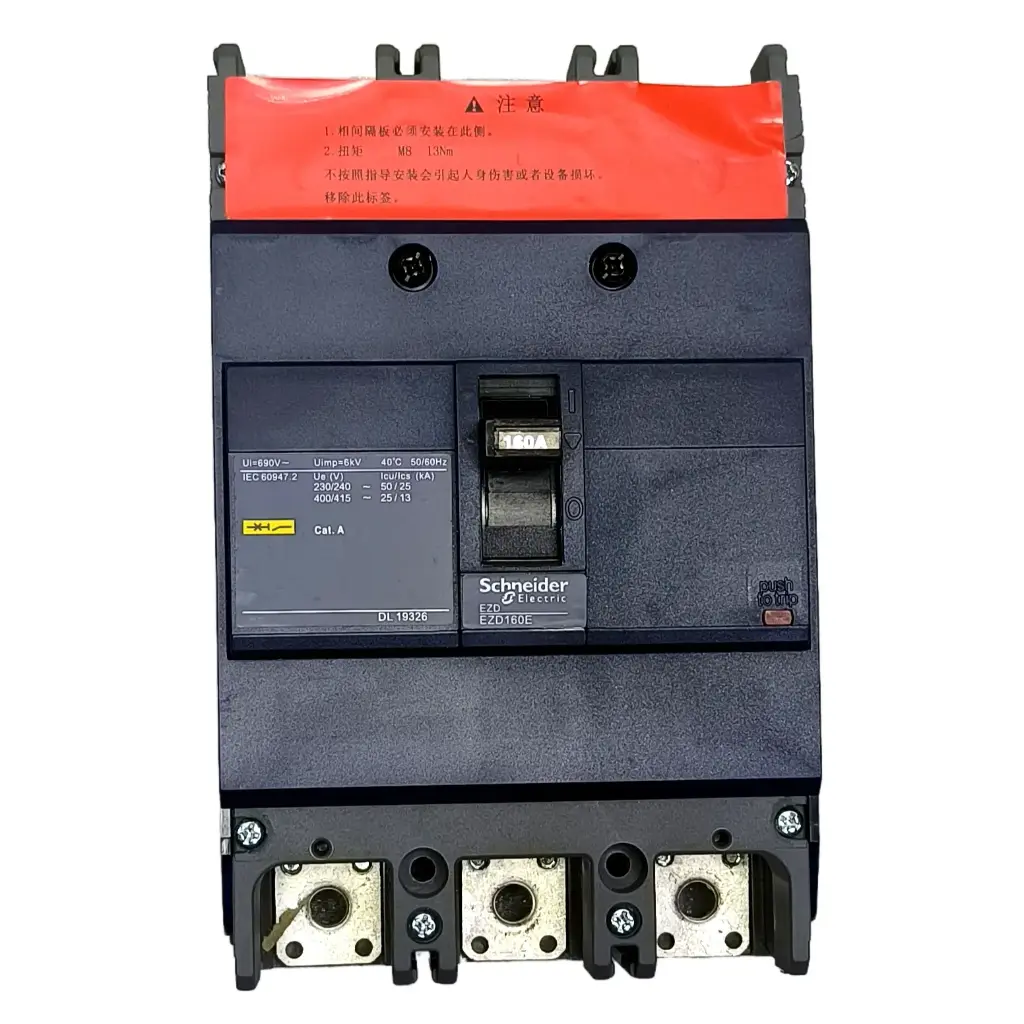

BREAKER SCHNEIDER ELECTRIC EZD 160E 3160N is the protection device in the power circuit: it trips on overload or fault so the damage stops before the alternator or the installation.
Ageing is counted in trip operations and in environment: dust, moisture and heat degrade the mechanism. On site panels, check terminal torque every year — most nuisance trips start there.
Specifications and compatibility
- Brand
- SCHNEIDER ELECTRIC
- Electrical type
- Moulded Case Circuit Breaker (MCCB)
- Amperage
- 160 A
- Pole
- 3P
How to verify before ordering
- Match rated current, trip curve (B/C/D) and breaking capacity to the circuit it protects.
- Check whether the panel uses a moulded case, DIN rail or open-frame breaker, and how many poles.
- Confirm the kA rating: fitting one below the original leaves the panel unprotected against short circuit.
- Declared make or line: SCHNEIDER ELECTRIC. If your equipment carries another make, the part may not be equivalent.
Frequently asked questions
Why does the breaker trip when the set starts?
The motor inrush or the transformer magnetising current crosses the instantaneous threshold. It is solved with the right curve (type D or a short-delay setting), not by raising the rating without recalculating the cable.
Can I replace it with a higher amperage one?
Not without recalculating cable and alternator. A larger breaker leaves the cable unprotected and pushes the damage into the winding.
Related parts
- BREAKER SCHNEIDER ELECTRIC EZD100E3100N
- BREAKER SCHNEIDER ELECTRIC EZD250E3250N
- BREAKER SCHNEIDER ELECTRIC EZD400E3320K
- Disyuntor de caja moldeada BCM1 800A 3P
- Disyuntor de caja moldeada - BCM1 250AM 3P
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Characteristics | |
|---|---|
| Amperage (A) | 160 A |
| Brand | SCHNEIDER ELECTRIC |
| Pole | 3P |
| Electrical power | |
|---|---|
| Electrical | Moulded-case circuit breaker |
