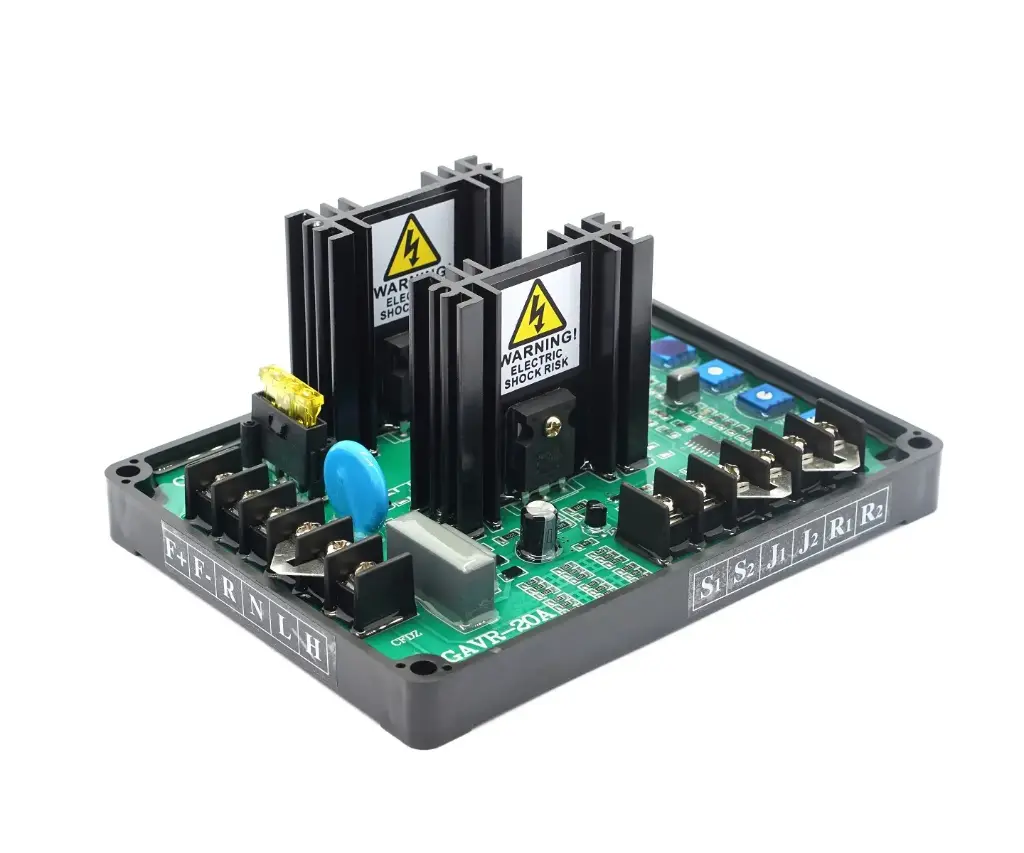

AVR - Automatic Voltage Regulator GAVR-20A

AVR - Automatic Voltage Regulator GAVR-20A

https://www.nanwan.cc/web/image/product.template/3281/image_1920?unique=2a5938f
(0 review)
El AVR GAVR-20A es un regulador de voltaje robusto y eficiente, diseñado para operar con una entrada monofásica de 180-240 V CA a 50/60 Hz. Ofrece una potente salida máxima de 90 V CC a 240 V CA, con una corriente continua de 15 A CC y una capacidad intermitente de 20 A CC por 10 segundos, protegido por un fusible de 20 Amps. Es compatible con una resistencia de excitatriz de 10 a 100 Ohmios y cuenta con un voltaje remanente (BUILD UP) de 5 V CA para un arranque confiable.

$ 90.98 90.98 USD Tax Excluded

90.98 Bs Tax Excluded

Not Available For Sale

  • Generator Parts
  • Applicable To
  • Weight
  • Dimensions

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

AVR - GAVR-20A belongs to the generator excitation circuit and holds the output voltage within about ±1 % when the load steps up or down.

AVR wear is thermal. It works inside the generator compartment with no ventilation of its own, so it is usually the first module to age on a high-hour set. Keeping one on the shelf avoids a multi-day stop for a low-cost part.

Specifications and compatibility

Applicable to
UNIVERSAL
Dimensions
17 x 6 x 13 cm
Weight
1.00 kg

How to verify before ordering

  • Check that the reference printed on the AVR label (for example AS440, MX341, R120) matches exactly; variants differ in sensing range and excitation level.
  • Confirm the excitation input voltage and the generator type it serves. They are not interchangeable across generator makes or speed ranges.
  • Inspect wiring and brushes before replacing the module: a loose connection produces exactly the same symptoms as a burnt AVR.

Frequently asked questions

How do I know the fault is the AVR and not the generator?

Measure output voltage at steady load. If it is low and does not respond to the excitation trim, while windings and rotating diodes are healthy, the AVR is the suspect. A cross-test with a spare AVR confirms it in minutes.

Can the voltage be trimmed after installation?

Yes. Most of these regulators have a voltage and a stability trim pot. Set them at no load to the site nominal voltage, then verify under load before signing off.

Related parts

See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.

Specifications

Characteristics
Applicable To Universal
Weight 1,00 kg
Dimensions 17 x 6 x 13 cm
Spare Parts
Generator Parts AVR
