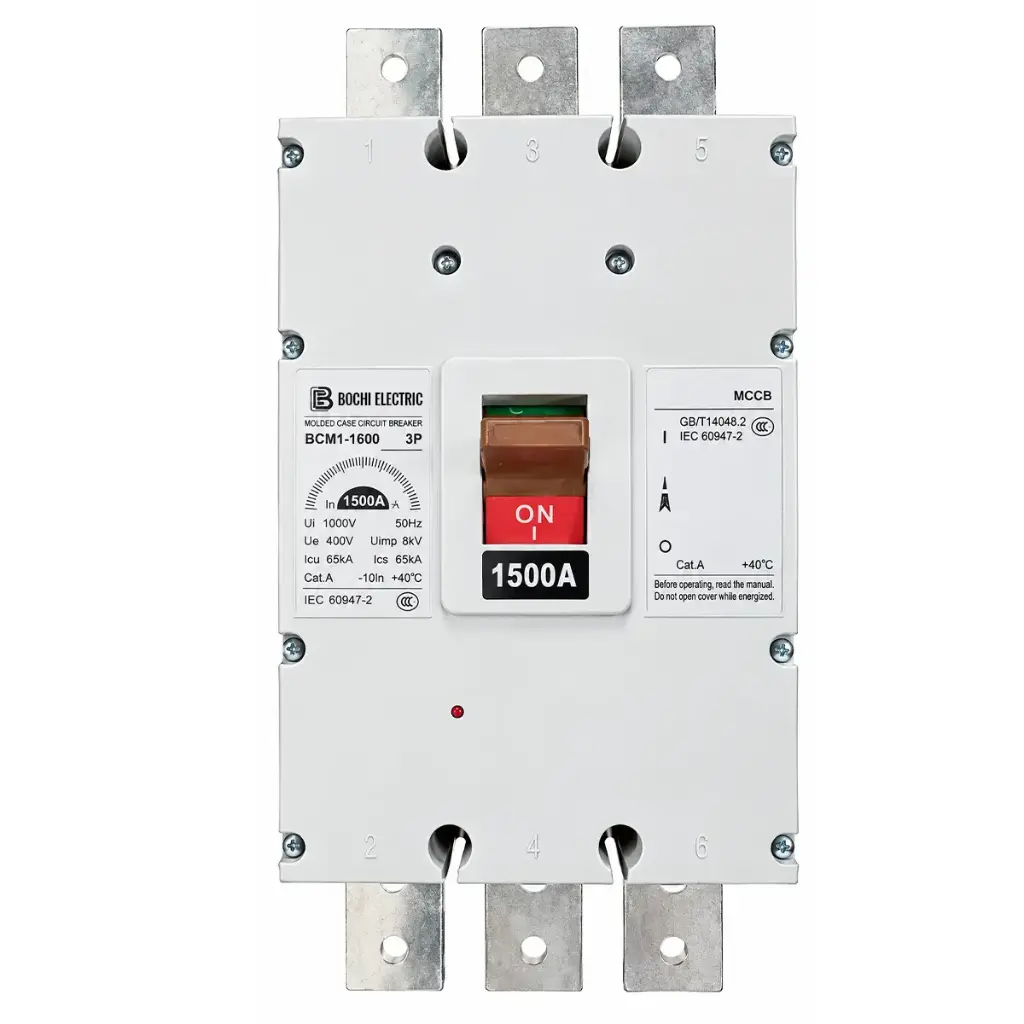

Circuit Breaker BCM1 1500AMP 3P is a circuit breaker: it opens on overload or short circuit, protecting the generator, the cabling and the downstream load.
A breaker should not trip in normal service. If it opens at the usual load, the cause is nearly always a mis-set trip, loose terminals generating heat, or a breaker sized below the real set current.
Specifications and compatibility
- Brand
- BCP
- Type
- Caja moldeada
- Electrical type
- Moulded Case Circuit Breaker (MCCB)
- Amperage
- 1500 A
- Pole
- 3P
How to verify before ordering
- Match rated current, trip curve (B/C/D) and breaking capacity to the circuit it protects.
- Check whether the panel uses a moulded case, DIN rail or open-frame breaker, and how many poles.
- Confirm the kA rating: fitting one below the original leaves the panel unprotected against short circuit.
Frequently asked questions
Why does the breaker trip when the set starts?
The motor inrush or the transformer magnetising current crosses the instantaneous threshold. It is solved with the right curve (type D or a short-delay setting), not by raising the rating without recalculating the cable.
Can I replace it with a higher amperage one?
Not without recalculating cable and alternator. A larger breaker leaves the cable unprotected and pushes the damage into the winding.
Related parts
- Disyuntor de caja moldeada - BCM1 250AM 3P
- Disyuntor de caja moldeada BCM1 800A 3P
- BREAKER SCHNEIDER ELECTRIC EZD400E3320K
- BREAKER SCHNEIDER ELECTRIC EZD100E3100N
- BREAKER SCHNEIDER ELECTRIC EZD160E3160N
See the spare parts catalogue or request a quotation quoting the equipment reference. Third-party trademarks are cited for identification purposes only.
Specifications
| Characteristics | |
|---|---|
| Amperage (A) | 1500 A |
| Type | Moulded case |
| Brand | BCP |
| Pole | 3P |
| Electrical power | |
|---|---|
| Electrical | Moulded-case circuit breaker |
